제품 상세 정보:
|
| 이름: | 아마존 패키지 ISTA-6의 진동 테스트 기계 ASTM D-4728을 준수 | 평가된 피크 힘: | 2000 킬로그램.Ｆ |
|---|---|---|---|
| 충격 프로스: | 4000kg.f | 배수량: | 100mm |
| 맥스 속도: | 2.0m/s | 냉각방식: | 공기-냉각 |
| 맥스. 가속: | 100g | 전기자: | φ340 |
| 강조하다: | ISTA-6 compliant vibration testing machine,Amazon packaging vibration tester,ASTM D-4728 vibration testing equipment |
||
In today's e-commerce era, efficient and secure product shipments are of paramount importance. One critical aspect to consider is the protection of products from the potential damages caused by transportation vibrations. The International Safe Transit Association (ISTA) has developed specific testing protocols, including ISTA 6 Amazon, to ensure the safety and reliability of products during shipment.
We understand the significance of ISTA 6 Amazon compliance and the need for reliable vibration testing solutions. Our advanced vibration systems are designed to meet the rigorous requirements of ISTA 6 Amazon, ensuring that your products are adequately protected throughout the shipping process.
ISTA 6 Amazon is a set of comprehensive test procedures specifically developed to mimic the challenges faced by products transported through the Amazon supply chain. By subjecting products to various vibration profiles and levels, this rigorous testing protocol aims to identify potential weaknesses and ensure adequate packaging designs for optimal product protection.
Our vibration systems are equipped with sophisticated controls and sensors capable of replicating a wide range of transportation-induced vibrations. By accurately simulating the real-world conditions experienced during shipping, we help you assess the integrity and durability of your products.
Contact us today to learn more about our vibration systems and how we can assist you in achieving ISTA 6 Amazon compliance for seamless product transportation.
| Item | Configuration | Qty. |
| 1) | Vibration shaker | |
| A20F34 shaker (included Pneumatic Centering Controller) | 1 set | |
| B752S blower (included silencer and Duct ) | 1 set | |
| Head Expander VT60CM | 1 set | |
| Horizontal Slip table HG60M | 1 set | |
| 2) | Power Amplifier | |
| LA20K Power amplifier(including Field power supply) | 1 set | |
| 3) |
Vibration Controller-Vcs-4 (Including Hardware and Control Functions Program software CDS |
|
| Accelerometer (Including Length 7m low noise BNC-M5 cable) | 2 set | |
| Computer(Including keyboard, mouse and monitor) | 0 set | |
| 4) |
Documentation Operation Manual, Packing List |
1 set |
| 5) | Accessories | |
| Maintenance Tools | 1 set | |
| Standard Spare Parts | 1 set |
| Shaker Specifications | |
| Peak Sine (Pk) | 2400Kg.f peak (24KN) |
| Random (RMS) | 2200Kg.f rms (22KN) @ISO5344 |
| Shock (Pk) | 4400Kg.f peak (44KN) @6ms |
| Usable Frequency | 1～3000Hz |
| Maximum Displacement (p-p) | 100mm (4inch) |
| Max. velocity | 2.0m/s |
| Max. acceleration | 70g |
| Vertical Load Support | 400 kg |
|
Body Suspension Natural Frequency (Thrust Axis) |
Less than 2.5 Hz |
| Armature Diameter | Ф340 mm |
| Armature Weight | About 30kg |
|
Fundamental Resonance Frequency (Bare table) |
2,500 Hz (nom.) +/- 5% |
|
Load Attachment Points (Standard) |
21stainless steel M10 Inserts |
| Stray Flux Density | ＜10gauss |
| Allowable partial force | 500.N.M |
| Shaker dimensions | 1190mmL×900mmD×1060mmH |
| Power Amplifier Specifications LA20K | |
| Rated Output Capacity | 22KVA |
| Signal to Noise Ratio | Greater than 65 dB |
| Amplifier Efficiency | Greater than 90% |
| Amplifier Overall Dimensions | 650mmL×920mmD×1780mmH |
* Technical consultation: test method, laboratory planning, and suggestion.
* Equipment selection: selection scheme, FAQ.
* View our Factory.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.

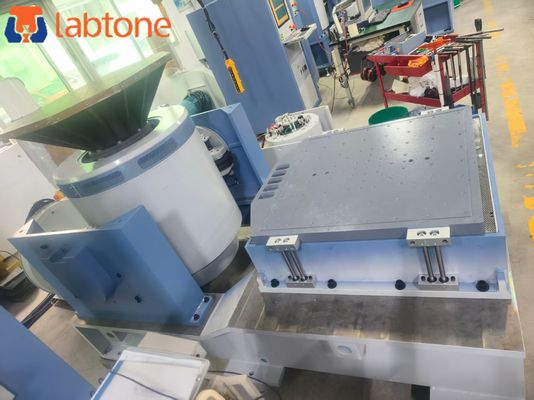

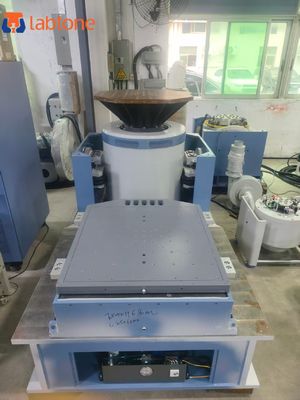

Detailed Images
