제품 상세 정보:
|
| 제품명: | 전기 역학적 진동 검사기 | 맥스 가속: | 100 g |
|---|---|---|---|
| 맥스 속도: | 200 센티미터 / Ｓ | 주파수 범위: | 1-3000 Hz |
| 맥스 치환: | 50.8 밀리미터 | 전원공급장치: | 3 단계 AC 380V±10% 50Hz |
| 싸인 힘 피크 값: | 32kN(3200kg.f) | 최대로드: | 500kg |
| 강조하다: | 32KN electro-dynamic vibration tester,vibration testing machine with slip table,IEC standard vibration tester |
||

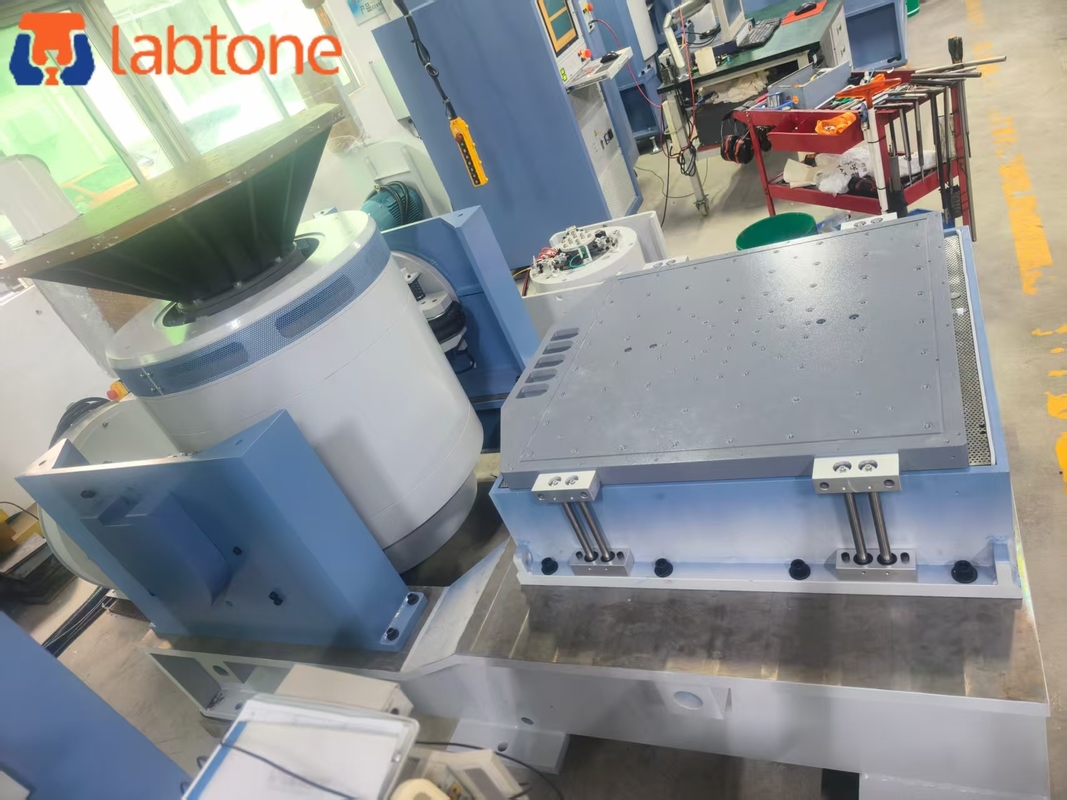

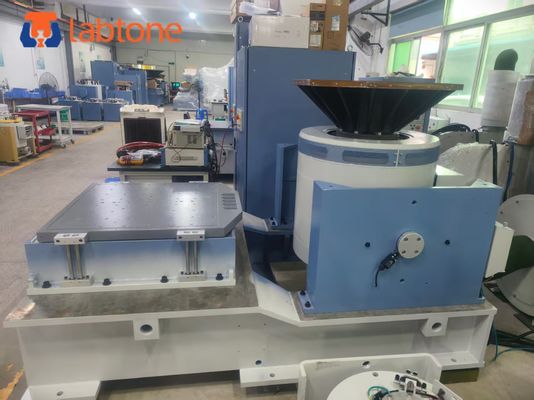

32KN Electro-dynamic Vibration Tester With 400*400mm Slip Table Meet IEC Standard
Industry Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Specifications: EV203-EV220
| Model | EV203 | EV206 | EV210 | EV220 |
| Vibration Generator | VG300/40 | VG600/50 | VG1000/50 | VG2000/50 |
| Frequency(Hz) | 1-2500 | 1-3000 | 1-3000 | 1-3000 |
| Max Exiting Force(kg.f) | 300 | 600 | 1000 | 2000 |
| Max. Displacement (mmp-p) | 40 | 50.8 | 50.8 | 50.8 |
| Max. Acceleration(g) | 100 | 100 | 100 | 100 |
| Max. Velocity(cm/s) | 200 | 200 | 200 | 200 |
| Payload(kg) | 120 | 200 | 300 | 400 |
| Armature Mass(kg) | 3 | 6 | 10 | 20 |
| Armature Diameter(mm) | φ150 | φ200 | φ240 | φ320 |
| Cooling Method | Forced Air Cooling | |||
| Shaker Weight(kg) | 480 | 920 | 1200 | 1600 |
| Shaker Dimension L*W*H(MM) | 800*565*670 | 890*750*850 | 890*750*850 | 1200*870*1100 |
| Power Amplifier | Amp3k | Amp6k | Amp12k | Amp22k |
| Cooling Method | Forced Air Cooling | |||
| Power Amplifier Weight(kg) | 250 | 320 | 350 | 500 |
| Power Amplifier Dimension L*W*H(MM) | 880*590*1125 | 880*590*1275 | 880*590*1275 | 880*590*1275 |
| Utility Requirements |
3-phase AC380V ±10% 50Hz | |||
| Aggregate Capacity(KW) | 9 | 20 | 25 | 35 |
Applications:
Features:
Pre-Sales Service
1)Technical consultation: test method, laboratory planning and suggestion.
2)Equipment selection: selection scheme, FAQ.
3)Product testing scheme.
4)Customer communication and progress report.
After-Sales Service
1)Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
2)Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
3)Technical support: special paid services are provided according to customer’s needs.
Product Detail:
