제품 상세 정보:
|
| 사인 힘: | 300kg.f | 임의의 힘: | 300kg.f |
|---|---|---|---|
| 최대 변위: | 51 밀리미터 | 냉각방식: | 공기 냉각 |
| 유효 탑재량: | 100kg | 전력 증폭기: | 3-단계 AC 380V 50Hz |
| 강조하다: | air cooling vibration testing machine,vibration testing machine for electronics,electrical components vibration tester |
||

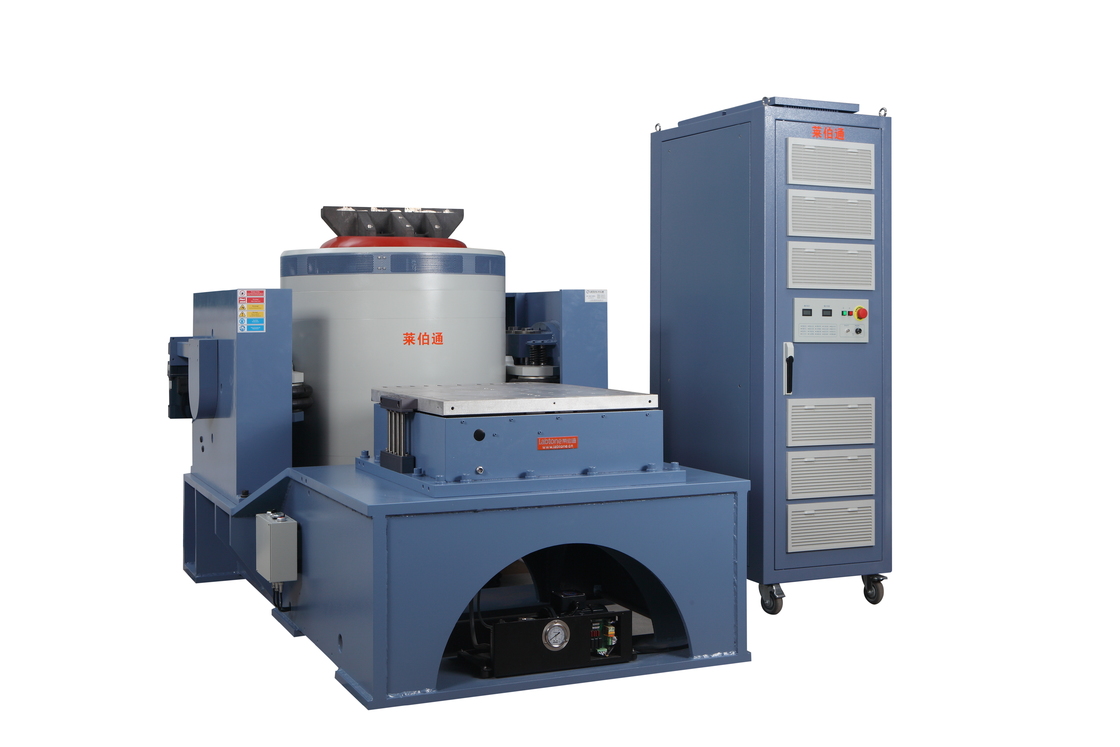

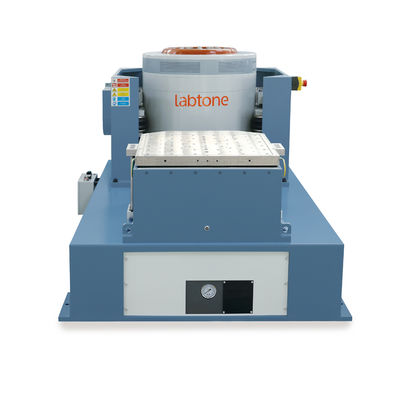

Air Cooling Vibration Testing Machine For Electronics and Electrical Components
Vibration Testing Machine Specifications
| Model | EV103 | EV203 | EV106 | EV206 | EV210 | EV220 |
| Vibration Generator | VG300/25 | VG300/40 | VG600/25 | VG300/50 | VG1000/50 | VG2000/50 |
| Frequency(Hz) | 2-4000 | 2-2500 | 2-3000 | 2-3000 | 2-3000 | 2-2500 |
| Max Exiting Force(kg.f) | 300 | 300 | 600 | 600 | 1000 | 2000 |
| Max. Displacement (mmp-p) | 25 | 38 | 25 | 50 | 50 | 50 |
| Max. Acceleration(g) | 100 | 100 | 100 | 100 | 100 | 100 |
| Max. Velocity(cm/s) | 200 | 120 | 180 | 200 | 200 | 200 |
| Payload(kg) | 110 | 120 | 200 | 200 | 300 | 400 |
| Armature Mass(kg) | 3 | 3 | 6 | 6 | 10 | 20 |
| Armature Diameter(mm) | φ150 | φ150 | φ200 | φ200 | φ240 | φ320 |
| Cooling Method | Forced Air Cooling | |||||
| Vibration Generator Weight(kg) | 460 | 460 | 720 | 920 | 1100 | 1600 |
| Vibration Generator Dimension L*W*H(MM) | 750*560*670 | 750*555*670 | 800*600*710 | 800*600*710 | 845*685*840 | 1200*870*1100 |
| Power Amplifier | Amp3k | Amp3k | Amp6k | Amp6k | Amp12k | Amp22k |
| Cooling Method | Forced Air Cooling | |||||
| Power Amplifier Weight(kg) | 250 | 250 | 320 | 320 | 350 | 500 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1250 | 800*550*1250 | 800*550*1250 | 800*550*1250 | 800*550*1520 | 800*550*1520 |
| Utility Requirements |
3-phase AC380V ±10% 50Hz | |||||
| Aggregate Capacity(KW) | 8 | 9 | 18 | 20 | 25 | 35 |
Specifications: EV340-EV450
| Model | EV340 | EV350 | EV420 | EV430 | EV440 | EV450 |
| Vibration Generator | VG4000/76 | VG5000/76 | VG2000/100 | VG3000/100 | VG4000/100 | VG5000/100 |
|
Frequency (Hz) |
2-2500 | 2-2500 | 2-3000 | 2-2500 | 2-2500 | 2-2500 |
| Max Exiting Force(kg.f) | 4000 | 5000 | 2000 | 3200 | 4000 | 5000 |
| Max. Displacement (mmp-p) | 76 | 76 | 100 | 100 | 100 | 100 |
| Max. Acceleration(g) | 80 | 100 | 90 | 71 | 66 | 71 |
| Max. Velocity(cm/s) | 200 | 200 | 200 | 250 | 250 | 250 |
| Payload(kg) | 1000 | 1000 | 500 | 500 | 800 | 1000 |
| Armature Mass(kg) | 50 | 50 | 23 | 45 | 60 | 70 |
| Armature Diameter(mm) | φ440 | φ440 | φ320 | φ400 | φ445 | φ445 |
| Cooling Method | Forced Air Cooling | |||||
| Vibration Generator Weight(kg) | 3500 | 3800 | 2000 | 3200 | 4200 | 4500 |
The purpose of vibration testing is to make a series of controllable vibration simulation in lab, no matter generated by natural or man-made vibration environment; such as waves, tidal flaps, wind, earthquake or rain and so on. It is to test if the product is capable of sustaining the vibration environment exerted from transporting or usage along its effective life cycle; and certify the standard of design & functional requirement of product.
Production Line:
