제품 상세 정보:
|
| 이름: | 휴대폰 진동 테스트 기계는 무작위 진동 테스트를 수행하여 IEC ISTA MIL STD를 충족합니다. | 평가된 피크 힘: | 2000kg.f(20kN) |
|---|---|---|---|
| 충격 프로스: | 4000kg.f(40kN) | 배수량: | 51mm |
| 맥스 속도: | 2.0m/s | 냉각방식: | 공랭식 |
| 맥스. 가속: | 100g | 전기자: | Φ240 |
| 최대 용량 소비: | 8kw | ||
| 강조하다: | Vibration testing machine for IEC compliance,Vibration tester with multiple displacement options,ISTA MIL STD vibration testing equipment |
||

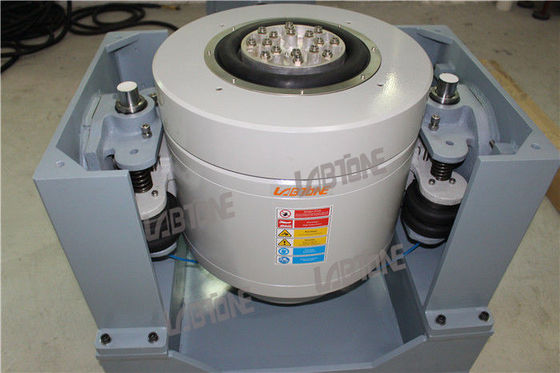

Mobile Phone Vibration Test Machine Performs Random Vibration Test Meet IEC ISTA MIL STD
Vibration Test Machine Specification:
|
Model
|
EV103
|
EV203
|
EV106
|
EV206
|
EV210
|
EV220
|
|
Frequency(Hz)
|
2-4000
|
2-2500
|
2-3000
|
2-3000
|
2-3000
|
2-2500
|
|
Max Exiting Force(kg.f)
|
300
|
300
|
600
|
600
|
1000
|
2000
|
|
Max. Displacement
(mmp-p)
|
25
|
38
|
25
|
50
|
50
|
50
|
|
Max. Acceleration(g)
|
100
|
100
|
100
|
100
|
100
|
100
|
|
Max. Velocity(cm/s)
|
200
|
120
|
180
|
200
|
200
|
200
|
|
Payload(kg)
|
110
|
120
|
200
|
200
|
300
|
400
|
|
Armature Mass(kg)
|
3
|
3
|
6
|
6
|
10
|
20
|
|
Armature Diameter(mm)
|
φ150
|
φ150
|
φ200
|
φ200
|
φ240
|
φ320
|
|
Cooling Method
|
Forced Air Cooling
|
|||||
|
Vibration Generator Weight(kg)
|
460
|
460
|
720
|
920
|
1100
|
1600
|
|
Vibration Generator Dimension L*W*H(MM)
|
750*560*670
|
750*555*670
|
800*600*710
|
800*600*710
|
845*685*840
|
1200*870*1100
|
|
Power Amplifier
|
Amp3k
|
Amp3k
|
Amp6k
|
Amp6k
|
Amp12k
|
Amp22k
|
|
Cooling Method
|
Forced Air Cooling
|
|||||
|
Power Amplifier Weight(kg)
|
250
|
250
|
320
|
320
|
350
|
500
|
|
Power Amplifier Dimension L*W*H(MM)
|
800*550*1250
|
|||||
|
Utility Requirements
|
3-phase AC380V ±10% 50Hz
|
|||||
|
Aggregate Capacity(KW)
|
8
|
9
|
18
|
20
|
25
|
35
|
Size(mm): 300 x 300-1500x1500
Material: Aluminium /Magnesium
Expansion platform is made of magnesium alloy to provide expansion for the armature. With Reasonable and scientific design, the platform can achieve a testing frequency of 2 kHz. Specific microstructure provides reasonable vibration damping, and minimizes the amplification factor of high frequency resonance.
* Technical consultation: test method, laboratory planning and suggestion.
* Equipment selection: selection scheme, FAQ.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Company Profile
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
We sincerely invite you to visit our factory.
Vibration Test machine performs the vibration test for Mobile Phone, Please contact us for details. Thanks!
