제품 상세 정보:
|
| 최대 사인력: | 2000kg.f | 기준에 맞다: | ISTA3A 6A |
|---|---|---|---|
| 기능: | 이후로, 무작위, 클래식 쇼크 | 맥스. 가속: | 80 Ｇ |
| 맥스. 속도: | 200 센티미터 / Ｓ | 맥스. 배수량: | 76.2 밀리미터 |
| 강조하다: | ISTA 3A vibration test system,6A-Amazon trailer simulation system,over-the-road vibration test equipment |
||
Random Vibration ISTA 3A 6A-Amazon Vibration Test Sysem Over-the-road Trailer Simulation
Introduction:
Vibration testing system simulate the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, simulations of reproduction of sinusoidal, random, resonant search and dwell, classical shock and road models, etc. can be achieved. It is essential for product quality assurance, new product research and development.
A complete set of vibration testing system is composed of shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection.
Technical Specifications: EV203-EV320
| Model | EV203 | EV206 | EV210 | EV320 |
| Vibration Generator | VG300/40 | VG300/50 | VG1000/50 | VG2000/50 |
| Frequency(Hz) | 1-2500 | 1-3000 | 1-3000 | 1-3000 |
| Max Exiting Force(kg.f) | 300 | 600 | 1000 | 2000 |
|
Max. Displacement (mm p-p) |
38 | 50 | 50 | 76.2 |
| Max. Acceleration(g) | 100 | 100 | 100 | 80 |
| Max. Velocity(cm/s) | 120 | 200 | 200 | 200 |
| Effective Payload(kg) | 120 | 200 | 200 | 300 |
| Armature Mass(kg) | 3 | 6 | 10 | 20 |
| Armature Diameter(mm) | φ150 | φ200 | φ240 | φ320 |
| Cooling Method | Forced Air Cooling | |||
| Vibration Generator Weight(kg) | 460 | 920 | 1100 | 1700 |
| Vibration Generator Dimension L*W*H(MM) | 750*555*670 | 800*600*710 | 845*685*840 | 1200*870*1130 |
| Power Amplifier | Amp3k | Amp6k | Amp12k | Amp30k |
| Cooling Method | Forced Air Cooling | |||
| Power Amplifier Weight(kg) | 250 | 320 | 350 | 500 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1250 | 800*550*1250 | 800*550*1520 | 800*550*1520 |
| Utility Requirements |
3-phase AC380V ±10% 50Hz | |||
| Aggregate Capacity(KW) | 9 | 20 | 25 | 40 |
Meet Standards:
MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Applicable Industries:
Automotive electronics device, Motormeter assembly, Automobile storage battery, Automotive electric equipments, Automotivemotor, Water-soluble dielectric battery, Safety valve, Auto air conditioning compressor etc.
Features:
| Pre-sales service |
| Technical Advisory: Testing method, laboratory planning and advice |
| Equipment Selection: Type-selecting scheme,FAQ |
| Product testing scheme |
| Selling service |
| Customer Communication,progress communication |
| Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning |
| Cooperate with measuring if need the third party verification |
| After-sale service |
| Quality assurance period for one year,lifelong maintenance. |
| Technical guidance |
| Feedback within 2 hours after get the call. |
| Accept OEM, Design service,Buyer label |

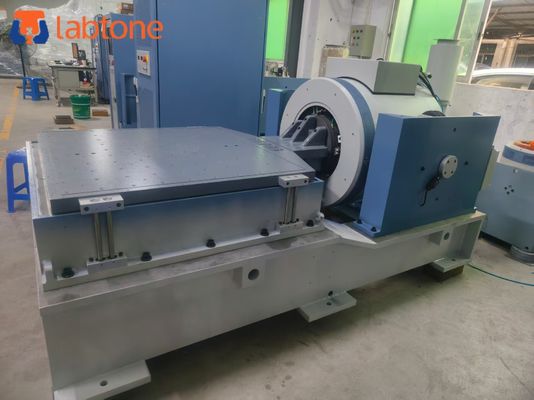

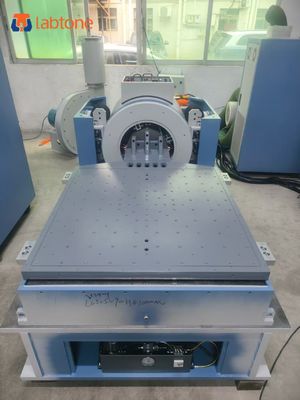

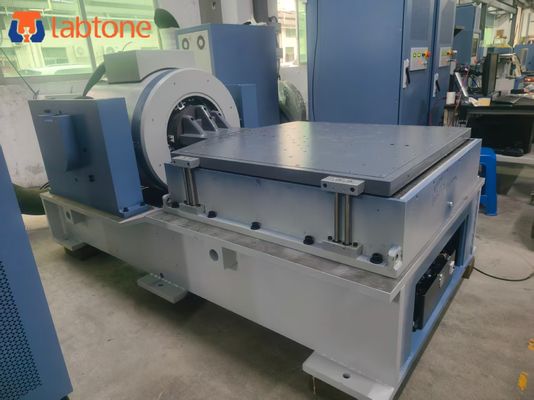

Detailed Pictures:
