제품 상세 정보:
|
| 모델:: | SKM500 | 테이블 사이즈 :: | 500*700mm |
|---|---|---|---|
| 도끼. 유효 탑재량:: | 50kg | 웨이브 형태 :: | 반 시너스 힘 |
| 가속 범위:: | 5 ~ 120g | 펄스 폭 :: | 6~18ms |
| 가장 밝은 부분:: | 700mm 범프 테스트 머신, 반 사인 힘 범프 테스트 머신, 50G 페이로드 범프 테스트 머신 | ||
| 강조하다: | Bump test machine with high energy impacts,Bump test machine with shock pulse capability,Bump test machine with fast cycle time |
||
Excellent Durability Repetitive Mechanical Bump Testing Equipment product is suitable for components, equipmentand other electronic electrician products during transport or using which may be subjected to repeated shocks.

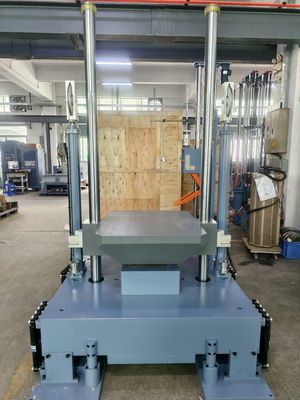

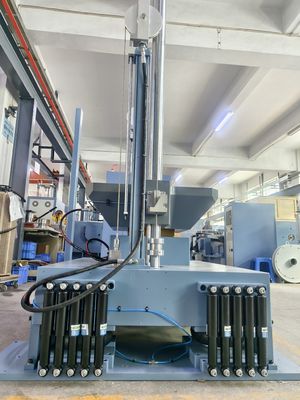

SKM500 provides high quality shock pulse capability with the added benefit of a must faster cycle time up to 120 shock impacts per minute. SKM500 Shock Test System can generate high energy impacts with velocity changes up to 6.8m/s.
Excellent Durability Repetitive Mechanical Bump Testing Equipment Speicifications
| Main parameters of the shock tester | |
| Table Size(mm) | 500 × 700 |
| Max. Specimen Weight | 100KG |
| Peak acceleration |
Half sine wave: 5 to 200G
|
| Pulse duration |
Half sine wave: 2 to 18 ms
|
| Max. Velocity change | 6.8m/s |
| Measuring system | |
| Input channels | 2 channels(hardware) |
| Sampling frequency | 192KHz |
| Pulse duration | 0.5 to 100ms |
| Max. acceleration | 5000G |
| Communication interface | USB2.0 |
| Supportive standard | ISO, UN38.3,MIL-STD-810, user defined |
| Operating system | Win7/Win8 |
| System acceleration sensor | |
| Brand | LAB |
| Model | 11100 |
| Output mode | IEPE TYPE |
| Sensitivity | 10 ±10% mV/g |
| Frequency range | 1.2 to 12KHz |
| Acceleration range | ±500G |
| Operating environment | -40 to +120℃ |
| Other information | |
| Power supply | AC, 1 phase, 220V±10% 3KVA |
| Compressed air | 0.5 to 0.8Mpa |
| Temperature | RT~40℃ |
| Humidity | 25℃, ＜ 85RH% |
| Safety |
Mean time between failure≥ 5000 hours; Continuous use of half sine waveform generator≥ 10000 times, Storage time in clean environment at normal temperature≥ 5 years. |
| Applicable standards | GB2423.5, GJB150.18, GJB360.23,UN38.3,IEC68-2-27, MIL—STD202F, MIL-STD810B, GB/T18287, etc. |
| Testing standard | JJG541-2005 |
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc
