제품 상세 정보:
|
| 제품명: | 다이나믹 셰이커 머신 | 최대 종료되는 힘: | 600kg |
|---|---|---|---|
| 주파수 범위: | 1-3000 Hz | 맥스. 배수량: | 50.8 밀리미터 |
| 맥스. 속도: | 200 센티미터 / Ｓ | 유효 탑재량: | 200kg |
| 전원공급장치: | AC 3은 380V / 50Hz를 단계적으로 시행합니다 | 용법: | 진동 테이블 테스트 장비 |
| 보증: | 12개월 | OEM: | 허용됨 |
| 강조하다: | ISTA standard vibration testing table,automotive vibration testing equipment,military grade vibration table |
||

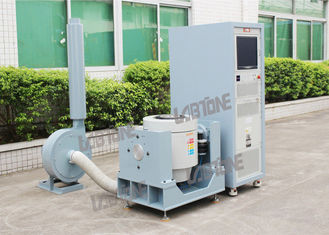

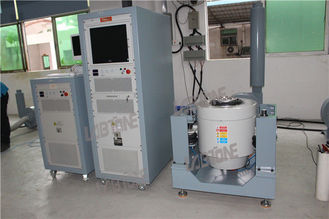

100G Dynamic Shaker Machine For Carton Package Vibration Testing Meet ISTA Standard
Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Applicable Industries: Automotive, Electronics, Aviation, Vessel, Telecommunication, Military Industry, Measuring Instrument etc.
Specifications: EV203-EV220
| Model | EV203 | EV206 | EV210 | EV220 |
| Vibration Generator | VG300/40 | VG300/50 | VG1000/50 | VG2000/50 |
| Frequency(Hz) | 2-2500 | 2-3000 | 2-3000 | 2-2500 |
| Max Exiting Force(kg.f) | 300 | 600 | 1000 | 2000 |
| Max. Displacement (mmp-p) | 40 | 51 | 51 | 51 |
| Max. Acceleration(g) | 100 | 100 | 100 | 100 |
| Max. Velocity(cm/s) | 120 | 200 | 200 | 200 |
| Payload(kg) | 120 | 200 | 300 | 400 |
| Armature Mass(kg) | 3 | 6 | 10 | 20 |
| Armature Diameter(mm) | φ150 | φ200 | φ240 | φ320 |
| Cooling Method | Forced Air Cooling | |||
| Vibration Generator Weight(kg) | 460 | 920 | 1100 | 1600 |
| Vibration Generator Dimension L*W*H(MM) | 750*555*670 | 800*600*710 | 845*685*840 | 1200*870*1100 |
| Power Amplifier | Amp3k | Amp6k | Amp12k | Amp22k |
| Cooling Method | Forced Air Cooling | |||
| Power Amplifier Weight(kg) | 250 | 320 | 350 | 500 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1250 | 800*550*1250 | 800*550*1520 | 800*550*1520 |
| Utility Requirements |
3-phase AC380V ±10% 50Hz | |||
| Aggregate Capacity(KW) | 9 | 20 | 25 | 35 |
Features
Customer Services
Presales
In-Sales
After-Sales
Product Details
