제품 상세 정보:
|
| 테이블 사이즈 :: | 500*700 | 웨이브 형태 :: | 사인파 |
|---|---|---|---|
| 펄스 폭 :: | 6-18ms | 낙하 높이 범위:: | 5-120mm |
| 유효 탑재량:: | 50kg | 가속 범위:: | 5-120g |
| 기계 차원(MM): | 750*660*880 | 최대 속도 변화 :: | 2.2m/s |
| 강조하다: | SKM Series bump test equipment,battery bump test machine,1-120Hz frequency bump tester |
||

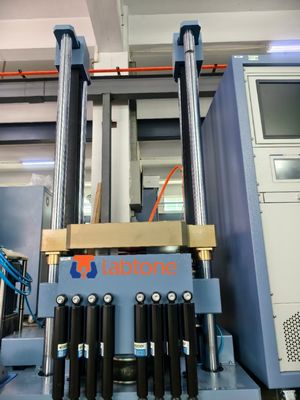

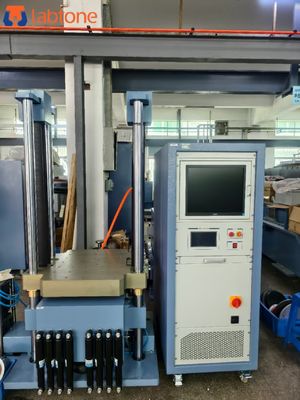

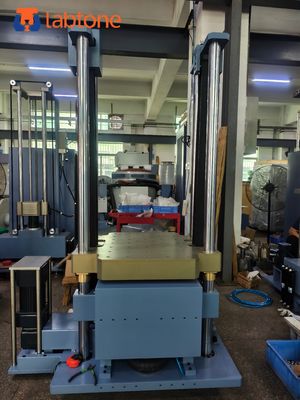

SKM series shock / bump testing systems are a combination of the bump test and shock test function devices. Simple structure, user-friendly control, high reliability and good waveform. With high efficient continuous bump test, it allows the end-user to run up to 60 bump tests per minute and 10 shock tests per minute. SKM series can perform single-shock, continuous shock and interval shock. It also realizes various shock type, good repeatability, low-energy design, non-pollution, environmental protection, unnecessary special foundation.
SKM series can perform half sine waveform, final peak saw-tooth waveform shocking test etc. It is compliant to international test specifications including GJB150, GJB360, GJB548, GB/T2423, GJB1217, JJG497, MIL-STD-810F, IEC68-2-27 and etc..
Speicifications
| Model | SKM500 | SKM700 | SKM800 | SKM1000 |
| Table size(mm) | 500*700 | 700*800 | 800*800 | 1000*1000 |
| Payload(kg) | 50 | 100 | 200 | 500 |
| Wave form | Half sine pulse | |||
| Acceleration range(G) | 5-120 | 5-100 | 5-100 | 5-80 |
| Pluse duration(ms) | 6--18 | |||
| Bump repetition frequency | 1-120 | 1-120 | 1-120 | 1-80 |
| Drop height range | 5-120mm | 5-120mm | 5-120mm | 5-180mm |
| Max velocity variation | 2.2m/s | 2.2m/s | 2.6m/s | 2.8m/s |
| Machine dimension(mm) | 750*660*880 | 900*900*800 | 900*960*800 | 1200*1150*860 |
| Machine weight(kg) | 1000 | 1260 | 2160 | 3660 |
| Power & Air supply | AC220V ±10% 50Hz Air supply:8kg 23m3 gasholder | |||
| Standards | GB/T2423.4,GB/T2423.6, IEC68-2-29, JJG497-2000, JISC0042-1995 etc | |||
Packaging & Shipping
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc
