제품 상세 정보:
|
| 테이블 크기: | 700*800mm | 맥스. 화물: | 100kg |
|---|---|---|---|
| 파도: | 하프 사인함수파 | 가속: | 10-200g |
| 맥박 지속 시간: | 4-20ms | 충격 빈도: | 1-120 |
| 드롭 높이 범위: | 5-120mm | 최대 속도 변동: | 4.5m/s |
| 이름: | 최대 200g의 테이블 50 x 70 cm 가속도를 갖춘 고속 공압 충격 시험기 | ||
| 강조하다: | SKM Series bump test machine,saw-tooth waveform bump tester,electronic products bump test machine |
||

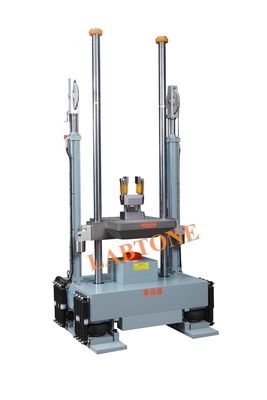

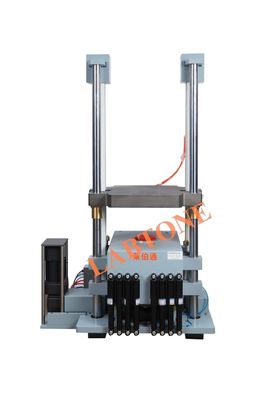

High Speed Pneumatic Shock Tester With Table 50 x 70 cm Acceleration up to 200g
The Bump Shock Test Machine is designed to evaluate the crashworthiness of the product structure in order to evaluate the ability of the laboratory simulation products to withstand impact damage in actual use. Product structure strength will be optimized through test data, The reliability of the product can be effectively improved by correctly evaluating the crashworthiness of the product. With laboratory test to simulate the collision products may be in the transport loading and unloading damage, thus to evaluate the packaging's ability to protect the product.
Components and other electronic and electrical products may experience repeating impact during transportation or use. Bump test can be used as a method to ensure the satisfaction of design structure or as a quality assurance method. Specimen will experience regular peak acceleration and continuous impact with standard pulse during the bump test.
SKM series can perform half sine waveform, final peak saw-tooth waveform shocking test etc. It is compliant to international test specifications including GJB150,GJB360,GJB548,GB/T2423,GJB1217,JJG497,MIL-STD-810F,IEC68-2-27, IS: 616/IEC 60065.
Excellent Durability Repetitive Mechanical Bump Testing Equipment Speicifications
| Model | SKM500 | SKM700 | SKM800 | SKM1000 |
| Table size(mm) | 500*700 | 700*800 | 800*800 | 1000*1000 |
| Payload(kg) | 50 | 100 | 200 | 500 |
| Wave form | Half sine pulse | |||
| Acceleration range(G) | 5-120 | 5-100 | 5-100 | 5-80 |
| Pluse duration(ms) | 6--18 | |||
| Bump repetition frequency | 1-120 | 1-120 | 1-120 | 1-80 |
| Drop height range | 5-120mm | 5-120mm | 5-120mm | 5-180mm |
| Max velocity variation | 2.2m/s | 2.2m/s | 2.6m/s | 2.8m/s |
| Machine dimension(mm) | 750*660*880 | 900*900*800 | 900*960*800 | 1200*1150*860 |
| Machine weight(kg) | 1000 | 1260 | 2160 | 3660 |
| Power & Air supply | AC220V ±10% 50Hz Air supply:8kg 23m3 gasholder | |||
| Standards | GB/T2423.4,GB/T2423.6, IEC68-2-29, JJG497-2000, JISC0042-1995 etc | |||
Company Profile:
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
