제품 상세 정보:
|
| 최대 종료되는 힘: | 32KN | 주파수 범위: | 2~4000 Hz |
|---|---|---|---|
| 맥스. 배수량: | 51 밀리미터 | 맥스. 속도: | 200 센티미터 / Ｓ |
| 유효 탑재량: | 500kg | 전원공급장치: | AC 3은 380V / 50Hz를 단계적으로 시행합니다 |
| 강조하다: | vibration testing equipment with strong suspension,linear motion guiding vibration table,accurate vibration table testing equipment |
||
ISTA 6-Amazon Electrodynamic Vibration Shaker System AC 3-Phase 380V / 50Hz
Test requirements and model selection guide
To choose a suitable vibration test system, the most important thing is to know the exciting force required to perform the vibration test. To evaluate and calculate the exciting force, the following test specifications should be known:
Clear Testing Requirements:
The specimen fixation is selected based on the upper limit of test frequency and specimen size, either vertical expansion platform or horizontal slip table. Specimen mass is needed to evaluate the required exciting force for vibration test.
Standards:
MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Application:
Automotive, Electronics, Aviation, Vessel, Telecommunication, Military Industry, Measuring Instrument etc.
Features:
Working Principle:
Specifications: EV232-EV260
| System Model | EV232 | EV240 | EV250 | EV260 |
| Vibration Generator | VG3200/50 | VG4000/50 | VG5000/50 | VG6000/50 |
| Frequency Range(Hz) | 2-2500 | 2-2500 | 2-2500 | 2-2500 |
| Max.Force(kg.f) | 3200/32KN | 4000/40KN | 5000/50KN | 6000/60KN |
| Max. Displacement(mmp-p) | 50 | 50 | 50 | 50 |
| Max. Acceleration(g) | 100 | 100 | 100 | 100 |
| Max.Velocity(cm/s) | 200 | 200 | 200 | 200 |
| Payload(kg) | 500 | 800 | 1000 | 1000 |
| Armature Mass(kg) | 32 | 35 | 50 | 50 |
| Armature Dia.(mm) | ф400 | ф400 | ф450 | ф450 |
| Cooling Method | Air Cooling | |||
| Vibration Generator Weight(kg) | 2000 | 2500 | 3500 | 3800 |
| Vibration Generator Dimention (L×W×H)(mm) |
1400×900×1100 | 1400×980×1100 | 1600×1120×1340 | 1600×1120×1340 |
| Power Amplifier | Amp35k | Amp50k | Amp60k | Amp70k |
| Cooling Method | Air Cooling | |||
| Power Amplifier Weight(kg) | 550 | 600 | 800 | 1000 |
| Power Amplifier Size (L×W×H)mm |
800×550×1920 | 800×550×1920 | 800×550×1920 | 800×550×1920 |
| Voltage requirements | 3-phase AC380V±10% 50Hz | |||
| Aggregate Capacity(KW) | 45 | 64 | 85 | 95 |
Customer Services:
Presales
In-Sales
After-Sales
Company Profile:
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
We sincerely invite you to visit our factory.

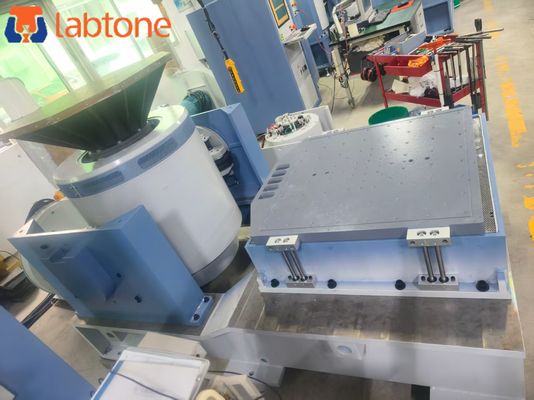

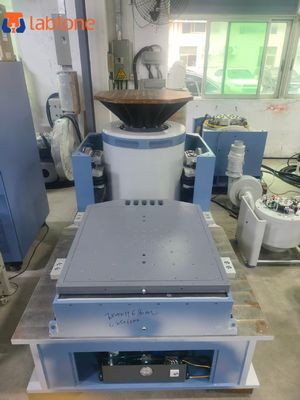

Refrence Picture:
