제품 상세 정보:
|
| 주파수 범위: | 1 - 3000Hz | 평가된 힘: | 10 kn |
|---|---|---|---|
| 출력 전력: | 12 kVA | 출력 전압: | 100 v |
| 출력 전류: | 100 A | 증폭기 차원: | 800×550×1520mm |
| 강조하다: | slip table head expander vibration testing,vibration table testing equipment expander,measuring instruments vibration table expander |
||

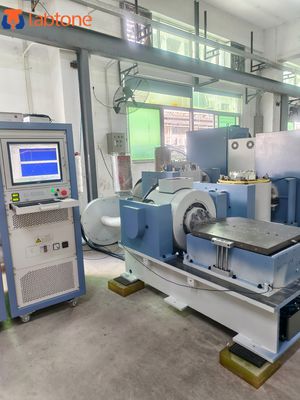

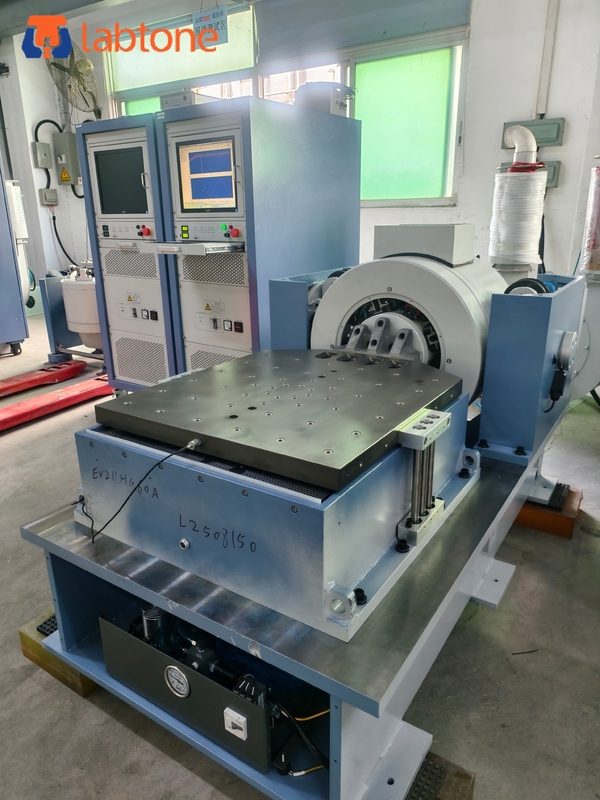

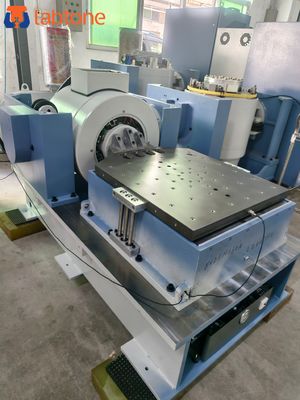

Laboratory Vibration Testing Equipment With Slip Tables For IEC60601-1-11-201
Applicable Standards
MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Applicable Industries:
Automotive, Electronics, Aviation, Large Ships, Military Industry, Rail Transit, Potoelectronics, Measuring Instrument etc.
Features:
Working Principle:
Specifications: EV203-EV220
| Model | EV203 | EV210 | EV220 |
| Vibration Generator | VG300/40 | VG1000/50 | VG2000/50 |
| Frequency(Hz) | 1-3000 | 1-3000 | 1-3000 |
| Max Exiting Force(kg.f) | 300 | 1000 | 2000 |
| Max. Displacement (mmp-p) | 40 | 51 | 51 |
| Max. Acceleration(g) | 100 | 100 | 100 |
| Max. Velocity(cm/s) | 120 | 200 | 200 |
| Payload(kg) | 120 | 300 | 400 |
| Armature Mass(kg) | 3 | 10 | 20 |
| Armature Diameter(mm) | φ150 | φ240 | φ320 |
| Cooling Method | Forced Air Cooling | ||
| Vibration Generator Weight(kg) | 460 | 1100 | 1600 |
| Vibration Generator Dimension L*W*H(MM) | 750*555*670 | 845*685*840 | 1200*870*1100 |
| Power Amplifier | Amp3k | Amp12k | Amp22k |
| Cooling Method | Forced Air Cooling | ||
| Power Amplifier Weight(kg) | 250 | 350 | 500 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1250 | 800*550*1520 | 800*550*1520 |
| Utility Requirements |
3-phase AC380V ±10% 50Hz | ||
| Aggregate Capacity(KW) | 9 | 25 | 35 |
Workshop:
