제품 상세 정보:
|
| 테이블 사이즈 :: | 800*800mm | 맥스 페이로드 ::: | 200kg |
|---|---|---|---|
| 웨이브 형태 :: | 반 사인 펄스 | 가속 범위:: | 5-100 Ｇ |
| 펄스 폭 :: | 6~18ms | 최대 속도 변동: | 2.6m/초 |
| 기계 차원(MM): | 900*960*800 | 기계 무게 (kg): | 2160 |
| 표준: | GB/T2423.4, GB/T2423.6, IEC68-2-29, JJG497-2000, JISC0042-1995 등 | 가장 밝은 부분:: | 충격 테스트 범프 머신 반복, 반복 충격 범프 테스트 머신, 전자 범프 테스트 머신 |
| 강조하다: | SKM800 bump test machine,electronic component bump tester,repeated bump testing machine |
||

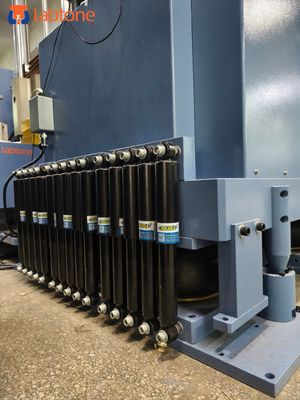

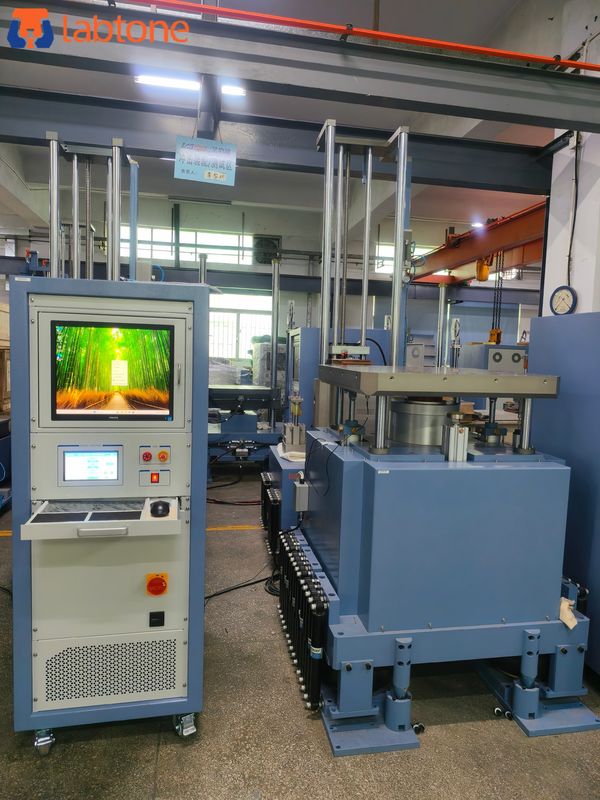

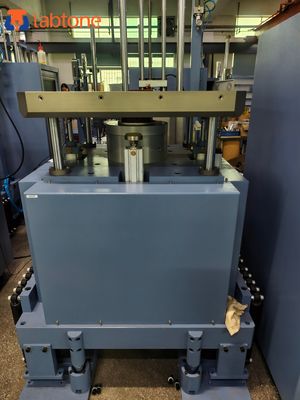

Excellent Durability Repetitive Mechanical Bump Testing Equipment product is suitable for components, equipmentand other electronic electrician products during transport or using which may be subjected to repeated shocks.
SKM500 provides high quality shock pulse capability with the added benefit of a must faster cycle time up to 120 shock impacts per minute. SKM500 Shock Test System can generate high energy impacts with velocity changes up to 6.8m/s.
Excellent Durability Repetitive Mechanical Bump Testing Equipment Speicifications
| Model | SKM500 | SKM700 | SKM800 | SKM1000 |
| Table size(mm) | 500*700 | 700*800 | 800*800 | 1000*1000 |
| Payload(kg) | 50 | 100 | 200 | 500 |
| Wave form | Half sine pulse | |||
| Acceleration range(G) | 5-120 | 5-100 | 5-100 | 5-80 |
| Pluse duration(ms) | 6--18 | |||
| Bump repetition frequency | 1-120 | 1-120 | 1-120 | 1-80 |
| Drop height range | 5-120mm | 5-120mm | 5-120mm | 5-180mm |
| Max velocity variation | 2.2m/s | 2.2m/s | 2.6m/s | 2.8m/s |
| Machine dimension(mm) | 750*660*880 | 900*900*800 | 900*960*800 | 1200*1150*860 |
| Machine weight(kg) | 1000 | 1260 | 2160 | 3660 |
| Power & Air supply | AC220V ±10% 50Hz Air supply:8kg 23m3 gasholder | |||
| Standards | GB/T2423.4,GB/T2423.6, IEC68-2-29, JJG497-2000, JISC0042-1995 etc | |||
