제품 상세 정보:
|
| 모델: | HSKT10D | 테이블 크기: | 210 x 210 |
|---|---|---|---|
| 견본 최대 중량(KG): | 10 | 충격 펄스: | 하프 사인 |
| 가속 범위 (m/s2): | 20----10000 | 펄스 폭 범위 (부인): | 0.2~11 |
| 강조하다: | industrial shock test system,shock test system with training programs,global service shock test system |
||

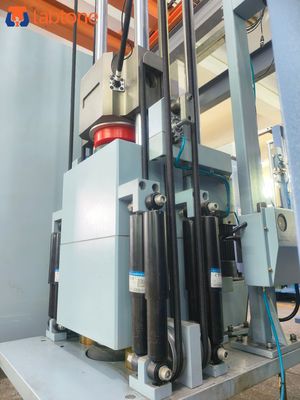

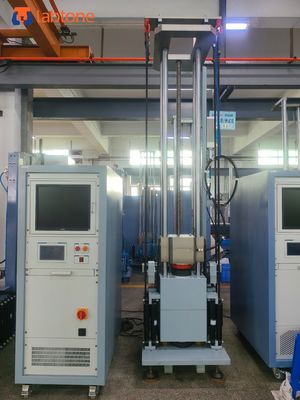

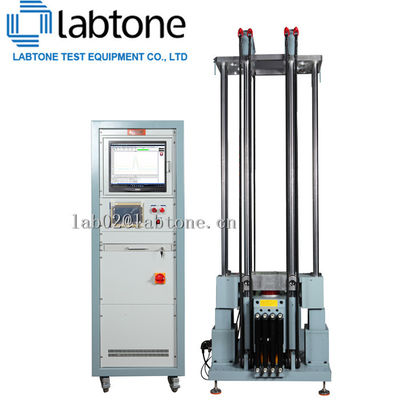

High Acceleration Programmable Shock Testing Machine With ISTA Standard
The precise-type high-acceleration shock tester can provide all half-sine short wave specification specified in JESD22-B110. To meet them, merely change different shock rubber-pad on shock seat. The wave is complete with high repeatability, able to provide user accurate test result.
Conform to different test specs such as JESD22-B110 and IEC spec.
Shock testing systems Specifications
| Model | HSKT10 | HSKT10D |
| Table size (mm) | 200 x200 | 210 x 210 |
| Specimen max weight(kg) | 10 | 10 |
| Shock pulse | Half-sine | |
| Acceleration range (m/s2) | 20----1500 | 20----10000 |
| Pulse duration range (ms) | 0.5~11 | 0.2~11 |
| Seismic base | Pneumatic springs device | |
| Utility reqyurements | AC220V 50Hz 5A Air pressure:more than 0.5Mpa | |
