제품 상세 정보:
|
| 모델: | G-HSKT30 | 테이블 크기: | 300 Ｘ 300 |
|---|---|---|---|
| 견본 최대 중량(KG): | 30 | 충격 펄스: | 하프 사인 |
| 가속: | 20-35000G | 이중 질량체 충격 증폭기: | DMSA-150 |
| 테이블: | 150x115mm | 무게: | 1.5kg |
| 맥스. 가속: | 350000G | ||
| 강조하다: | 30kg payload shock test system,high acceleration shock test system,35000G impact test system |
||

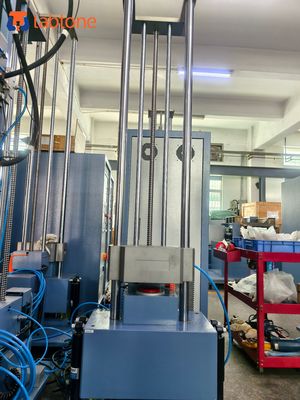

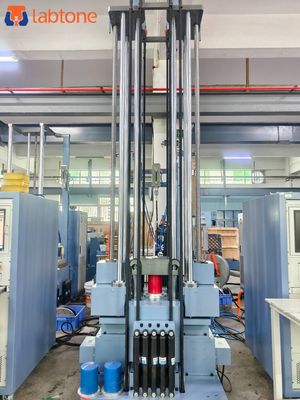

30kg Payload Impact Shock Test System With High Acceleration Up To 35000G
Shock Test Machine Specifications
| Main parameters of the shock tester | |
| Operating platform | 300 × 300 mm |
| Max. load | 30 KG |
| Peak acceleration | 200-100000m/s2 (20 -10000G) |
| Pulse duration | 0.2~11 ms (Half sine wave) |
| Equipment dimensions | 1010 mm x 1530 mm x 2750 mm |
| Equipment weight | 1950 kg |
| Power & Air supply | 3phase 380V±10％ 50Hz,5KVA & 0.5—0.7MPa |
| Dual Mass Shock Amplifier | |
| Table size | 150 x 115 mm |
| Max. load | 3 kg |
| Peak acceleration | 35000G |
| Pulse duration | 0.06—0.5ms |
| Measuring system | |
| Input channels | 4 channels |
| Sampling frequency | 1MHz |
| Input mode | Support voltage, IEPE, Charge signal input directly. |
| Coupled mode | AC, DC, ICP |
| ADC resolution | 16 bits |
| Dynamic range | 80dB |
| harmonic distortion | <-70dB |
| Signal to Noise Ratio | >70dB |
| Pulse duration | Narrow -0.1ms |
| Acceleration range | Up to 100,000gn |
| Frequency accuracy | 0.01% |
| Voltage range | -10Vpeak--+10Vpeak |
| Supportive standard | GB, GJB, MIL-STD, ISO, IEC, user defined |
| Shock waveform | Half-sine |
| Communication interface | USB2.0 |
| Operating system | Win7/10 |
| Type | Shock acceleration sensors |
| Model | 3200B2T |
| Output mode | Charge type |
| Sensitivity | 0.05 mV/g±25% |
| Frequency range | 0.5 to 20K Hz frequency range (±10%) |
| Acceleration range | 50000G |
| Operating environment | -51 to +121℃ |
