제품 상세 정보:
|
| 모델: | SKT30 | 충격 펄스: | 하프 사인 |
|---|---|---|---|
| 가속 범위 (m/s2): | 20----600 | 펄스 폭 범위 (부인): | 0.2~11 |
| 테이블 크기: | 40X40cm | 이름: | 충격시험 시스템은 충격 시험 175g 3 부인 오브 IEC62133 배터리 시험을 수행합니다 |
| 정사각형: | 맥스는 150G 지속 기간 6-18ms를 아크엘에라이톤 | 힘: | 유압 |
| 강조하다: | IEC62133 shock test system,mobile phone shock tester,battery connector shock test system |
||

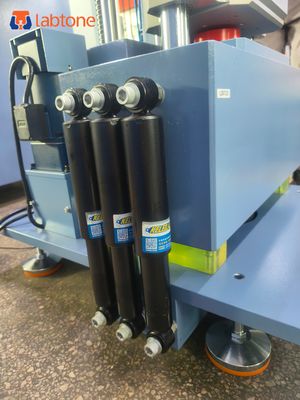

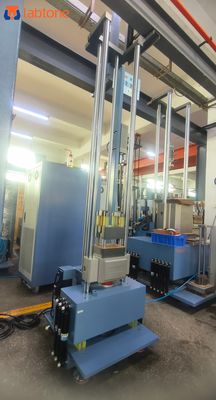

Shock Test System Performs Mechanical Shock Test 175g 3ms of IEC62133 Battery Test
Specification
| Main parameters of the shock tester | |
| Table Size | 400 × 400 mm |
| Max. Specimen Weight | 30KG |
| Peak acceleration | Half sine wave: 20 to 600G |
| Pulse duration | Half sine wave: 1 to 30 ms |
|
Pulse Waveform *With Optional Programmers |
Half Sine Trapezoidal * Terminal Peak Sawtooth* |
| Equipment dimensions | 79×80× 210cm |
| Equipment weight | 1050 kg |
| Data analysis & acquisition systems | |
| Input channels | 2 channels |
| Sampling frequency | 192KHz |
| Pulse duration | As narrow as 0.1ms |
| Max. acceleration | 100,000G |
| Communication interface | USB2.0 |
| Supportive standard | ISO, UN38.3,MIL-STD-810, user defined |
| Operating system | Microsoft Windows 7/10 |
| Accelerometer | |
| Model | C02A01 |
| Output mode | Charge type |
| Sensitivity | 10 pC/g |
| Frequency range | 0.5 to 8KHz |
| Acceleration range | ±2000G |
Standard Shock Test systems
| Model | SKT30 | SKT50 | SKT100 | SKT200 | SKT300 | SKT600 | SKT1000 | ||
| Table Size (cm) | 40 x 40 | 50 x 60 | 70 x 80 | 100 x 100 | 120 x 120 | 150 x 150 | 200 x 200 | ||
| Max. Specimen Weight(kg) | 30 | 50 | 100 | 200 | 300 | 600 | 1000 | ||
|
Max. Acceleration (G) |
Half Sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 | |
| Saw-tooth | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||
| Square | 150 | 150 | 150 | 100 | 100 | 100 | |||
|
Pulse duration (ms) |
Half Sine | 30—0.5 | 30～1 | 30～1 | 30～2 | 20～3 | 20～3 | 20～3 | |
| Saw-tooth | 18～6 | 18～6 | 18～6 | 18～6 | 18～6 | 16～6 | 18～6 | ||
| Square | 30～6 | 30～6 | 30～6 | 30～6 | 30～6 | 30～6 | |||
| Controller cabinet dimension(cm) | W55*D50*H80 | ||||||||
| Machine weight(Kg) | 1900 | 2300 | 3200 | 4200 | 8500 | 15500 | 21500 | ||
| Power supply | 3(phase) AC380V 50/60Hz Compressed air 0.5～0.8MPa | ||||||||
| Standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL | ||||||||
Company profile:
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipment. Our superior products mainly include Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started a business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument, and industrial machinery applications. Our experience and commitment to new product development have resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literature, manuals, and guides as well as having qualified staff and experts to solve your problems.
We sincerely invite you to visit our factory.
