제품 상세 정보:
|
| 모델 시스템:: | EV1005 | Max. 최대. Acceleration: 가속:: | 30g |
|---|---|---|---|
| 맥스. 속도:: | 1.6m/초 | 임의의 힘 :: | 550 엔 (55kg.f) |
| 치환 :: | 20 mm | 냉각 방법 :: | 공기 냉각 |
| 가장 밝은 부분:: | 진동 테스트 서비스, 진동 흔들기 시스템, 진동 테스트 장비 | ||
| 강조하다: | electrodynamic vibration shaker for laboratory,minitype vibration test system,standard vibration shaker for teaching |
||
Description
With light weight, small volume, convenient to move,ET series standard vibration table is widely used in the acceleration sensor calibration; vibration test, fatigue test and mechanical impedance test of micro parts; at the same time, the ET series can also be used for teaching and scientific research and laboratory.

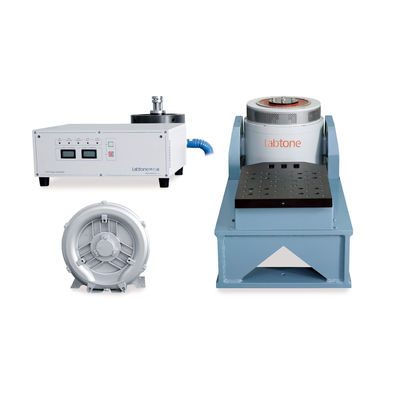

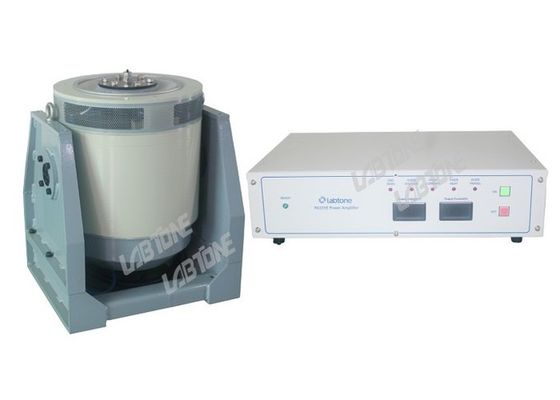

Minitype Vibration Test System
With light weight, small volume, convenient to move, ET series standard vibration table is widely used in the acceleration sensor calibration; vibration test, fatigue test and mechanical impedance test of micro parts; at the same time, the ET series can also be used for teaching and scientific research and laboratory.
Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.
Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.
| Item | Configuration | Qty. |
| 1. | Vibration shaker | |
| ET30 Shaker | 1 set | |
| 2. | Digital switch power amplifier | |
| PA502E Power Amplifier | 1 set | |
| 4. | Attached accessories | |
| connecting line | 1 set | |
| Operation instructions, inspection report, certificate, maintenance manual, etc. | 1 set | |
| Special tools | 1 set |
Vibration Test Machine Specification:

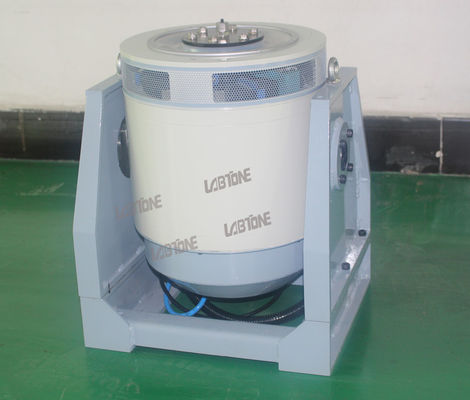

| Electrodynamic shaker | |
| Max. sine exciting force | 55Kg.f peak (550N) |
| Frequency range | 5～5000Hz (Larger frequencies are available) |
| Max. displacement | 20 mm p-p |
| Max. velocity | 1.6 m/s |
| Max. acceleration | 30 G (300 m/s2) |
| Vertical load support | 20 kg |
| Armature diameter | Ф120 mm |
| Armature weight | 1.7 kg |
| Over all Dimension | 445mm L x 333mm D x 203mm H |
| Shaker weight | 97 Kg |
| Cooling type | Air Cooling by inner axial fan |

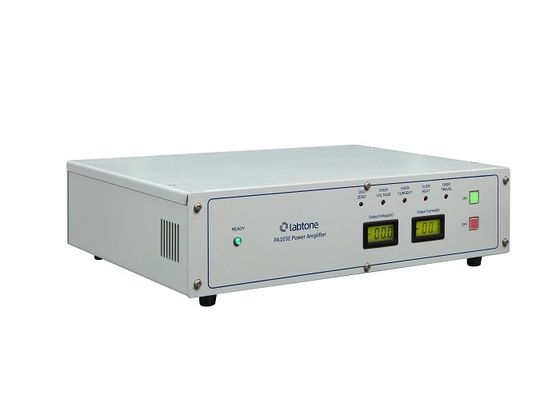

| PA501EF Power Amplifier | |
| Output power | 900 VA |
| Amplifier cabinet dimension | 430mm×200mm×500mm |
| Servo protection system | |
| Functions: | FUSE, OSC ZERO, OVER DISP, OVER VILTAGE, OVER CURRENT, OVER HEAT, EXT-TRIP, EXT-STOP |
| Vibration controller | |
| Hardware configuration: | 2-channel inputs, 1-channel outputs |
| Control computer | 1 set |
| Function |
Sine Control, Random Control Language:English,Chinese |
| Operating system | Microsoft Windows 7/8/10 |
| Acceleration sensor LAB |
Frequency range:1-12KHz Sensitivity: 30 ±10 pC/g Temperature range: -40℃ to 160℃ |
| Head Expander VT40CM | |
| Table size | 400x400mm |
| Material | Magnesium alloy |
| Frequency | Up to 2000Hz |
| Electrical requirements: | |
| Power supply | AC 220V±10%, 50/60Hz, Single Phase, 900VA |
| Environment Requirements |
Temperature: 0～40ºC Relative Humidity: 0～80%, non-condensing |
