제품 상세 정보:
|
| 정격 사인력: | 500 엔 (50kg.f) | 주파수 범위: | 5-3800Hz |
|---|---|---|---|
| 맥스. 가속: | 50 g | 맥스. 크기: | 12 mm |
| 맥스. 속도: | 1.2 초당 미터 | 기계 치수: | W360 Ｘ D300 Ｘ H350 밀리미터 |
| 강조하다: | Electrodynamic Vibration Shaker for calibration,Scientific research vibration testing equipment,Industrial vibration shaker with warranty |
||

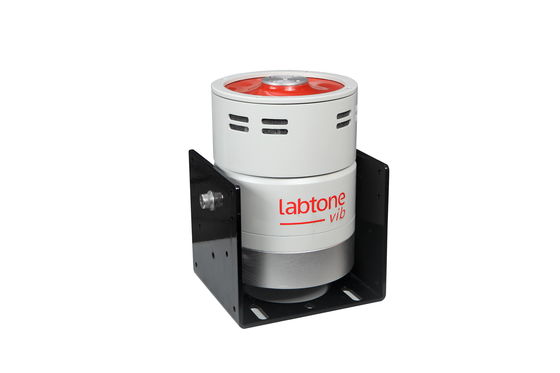

ISTA IEC Standard Small Electrodynamic Shaker For Small Lightweight Parts Vibration Test
ET series standard vibration table with light weight, small volume, convenient to move, is widely used in the acceleration sensor calibration, the tiny parts of resistance to vibration test, fatigue test and mechanical impedance test. At the same time, the ET series can also be used for teaching and scientific research and laboratory.
Features
Compose of vibration generator, power amplifier, vibration controller, signal generator, acceleration sensor.
Specifications
Model: ET50
Rated Sine Exiting Force: 50kg.f(500N)
Rated Random Exiting Force: 40kg.f(400N)
Frequency Range: 5-3800Hz
Max. Acceleration: 50G
Max. Amplitude: 12mm
Max. Velocity: 1.2cm/s
Armature Mass: 1kg
Machine Dimension: W360*D300*H350mm
Cooling Type: Forced cooling
Power Amplifier: VA05
Output Power: 500W
Output Voltage: 12VRMS
FrequencyRange:1-7KHz
Electrical Supply: Power AC220V ±10% 50Hz
Working Principle:
| Pre-sales service |
| Technical Advisory: Testing method, laboratory planning and advice |
| Equipment Selection: Type-selecting scheme,FAQ |
| Product testing scheme |
| Selling service |
| Customer Communication,progress communication |
| Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning |
| Cooperate with measuring if need the third party verification |
| After-sale service |
| Quality assurance period for one year,lifelong maintenance. |
| Technical guidance |
| Feedback within 2 hours after get the call. |
| Accept OEM,Design service,Buyer lable |
