제품 상세 정보:
|
| Max Sine Force :: | 1100kg.f | 충격 맥박 :: | 하프 사인 |
|---|---|---|---|
| 가속도 범위 (m/s2) :: | 20----600 | 펄스 지속 시간 범위 (MS) :: | 0.2~11 |
| 테이블 사이즈 :: | 40X40cm | 힘:: | 유압 |
| 가장 밝은 부분:: | 기계적 충격 테스트, 충격 테스트 장비 | ||
| 강조하다: | Shock test system for IEC62133,Mechanical shock test system 175g,Battery shock test system 3ms |
||

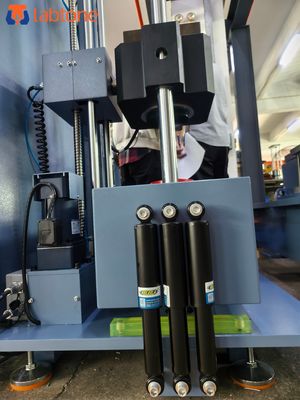

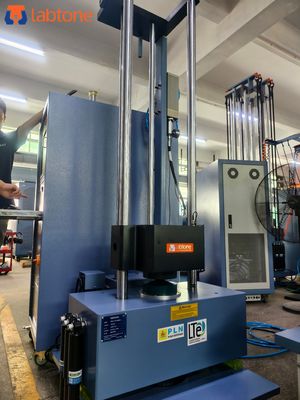

Shock Test System Performs Mechanical Shock Test 175g 3ms of IEC62133 Battery Test
Specification
| Main parameters of the shock tester | |
| Table Size | 400 × 400 mm |
| Max. Specimen Weight | 30KG |
| Peak acceleration | Half sine wave: 20 to 600G |
| Pulse duration | Half sine wave: 1 to 30 ms |
|
Pulse Waveform *With Optional Programmers |
Half Sine Trapezoidal * Terminal Peak Sawtooth* |
| Equipment dimensions | 79×80× 210cm |
| Equipment weight | 1050 kg |
| Data analysis & acquisition systems | |
| Input channels | 2 channels |
| Sampling frequency | 192KHz |
| Pulse duration | As narrow as 0.1ms |
| Max. acceleration | 100,000G |
| Communication interface | USB2.0 |
| Supportive standard | ISO, UN38.3,MIL-STD-810, user defined |
| Operating system | Microsoft Windows 7/10 |
| Accelerometer | |
| Model | C02A01 |
| Output mode | Charge type |
| Sensitivity | 10 pC/g |
| Frequency range | 0.5 to 8KHz |
| Acceleration range | ±2000G |
Standard Shock Test systems
| Model | SKT30 | SKT50 | SKT100 | SKT200 | SKT300 | SKT600 | SKT1000 | ||
| Table Size (cm) | 40 x 40 | 50 x 60 | 70 x 80 | 100 x 100 | 120 x 120 | 150 x 150 | 200 x 200 | ||
| Max. Specimen Weight(kg) | 30 | 50 | 100 | 200 | 300 | 600 | 1000 | ||
|
Max. Acceleration (G) |
Half Sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 | |
| Saw-tooth | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||
| Square | 150 | 150 | 150 | 100 | 100 | 100 | |||
|
Pulse duration (ms) |
Half Sine | 30—0.5 | 30～1 | 30～1 | 30～2 | 20～3 | 20～3 | 20～3 | |
| Saw-tooth | 18～6 | 18～6 | 18～6 | 18～6 | 18～6 | 16～6 | 18～6 | ||
| Square | 30～6 | 30～6 | 30～6 | 30～6 | 30～6 | 30～6 | |||
| Controller cabinet dimension(cm) | W55*D50*H80 | ||||||||
| Machine weight(Kg) | 1900 | 2300 | 3200 | 4200 | 8500 | 15500 | 21500 | ||
| Power supply | 3(phase) AC380V 50/60Hz Compressed air 0.5～0.8MPa | ||||||||
| Standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL | ||||||||
Company profile:
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipment. Our superior products mainly include Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started a business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument, and industrial machinery applications. Our experience and commitment to new product development have resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literature, manuals, and guides as well as having qualified staff and experts to solve your problems.
We sincerely invite you to visit our factory.
