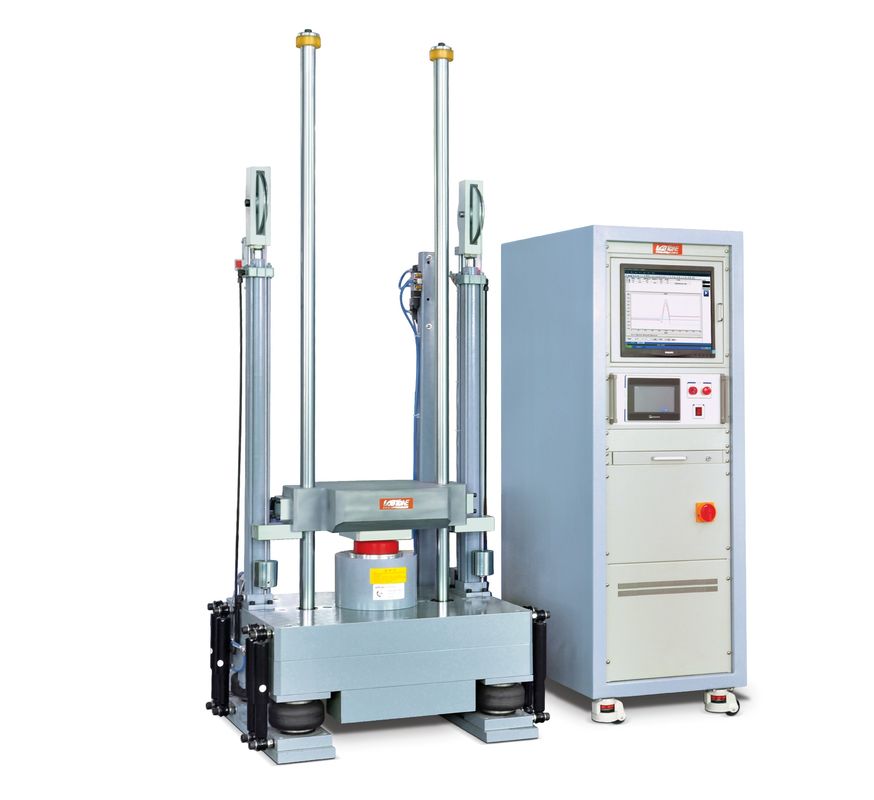

제품 상세 정보:
|
| 모델:: | SKT300 | 테이블 사이즈 :: | 100*100cm |
|---|---|---|---|
| 시편 최대 무게 (kg) :: | 300kg | 맥스. 가속도 (G) :: | 500g |
| 펄스 지속 시간 범위 (MS) :: | 3~20ms | 기계 하중 :: | 4200 킬로그램 |
| 하이라이트 :: | AC380V 충격 시험 시스템, 유압 댐핑 메커니즘 충격 시험 시스템, 사다리꼴파 충격 시험 시스템 | ||
| 강조하다: | Aviation Aerospace Shock Test System,500g Acceleration Shock Test System,Half Sinusoidal Wave Shock System |
||
Specifications
| Model | SKT50 | SKT100 | SKT200 | SKT300 | SKT500 | SKT1000 | SKT1500 | |
| Table size (cm) | 40 x 40 | 50 x 60 | 70 x 80 | 100 x 100 | 120 x 120 | 150 x 150 | 200 x 200 | |
| Maximum Specimen Weight(Kg) | 50 | 100 | 200 | 300 | 500 | 1000 | 1500 | |
| Max acceleration(G) | half sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 |
| saw-tooth waveform | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
| square | 100 | 100 | 100 | 60 | 50 | 50 | 50 | |
| Pulse Duration (ms) | half sine | 30~1 | 30~2 | 30~2 | 20~3 | 20~3 | 20~3 | 20~3 |
| saw-tooth waveform | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | |
| square | 12~6 | 12~6 | 12~6 | 12~6 | 12~6 | 12~6 | 12~6 | |
| Machine Dimension(cm) | 82x90x195 | 120x105x245 | 130x120x260 | 150x130x260 | 200x160x300 | 230x180x310 | 250x250x310 | |
| Controller cabinet Dimension(cm) | W55 x D50 x H80 | |||||||
| Machine Weight(Kg) | 1050 | 2000 | 3200 | 4200 | 8500 | 15500 | 21500 | |
| Power supply | 3-phase AC380V 50/60Hz 0.5~0.8MPa | |||||||
| Conforming standards |
GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL |
|||||||
Features
FAQ
1. How do you attach the hardware you're testing to your shaker?
By means of a fixture, usually aluminium or magnesium for lightness coupled with rigidity. They can be cast, or smaller fixtures machined from solid stock. Most fixtures are welded.
2. How to select the suitable shock test system model?
Depends on the specimen weight, dimension and testing requirement.
3. The purpose of test?
