제품 상세 정보:
|
| 드롭 높이: | 300-1500mm | 시료 중량: | 85KG |
|---|---|---|---|
| 견본 차원: | 800*800*800mm | 드롭 모드: | 자유 |
| 기계 치수: | 1500*1000*2150mm | 기계 무게: | 480kg |
| 보증: | 12개월 | 기압: | 0.5-0.7mpa |
| 강조하다: | Lab drop tester with motor control,Hydraulic cushioning drop tester,Packaging evaluation lab drop tester |
||

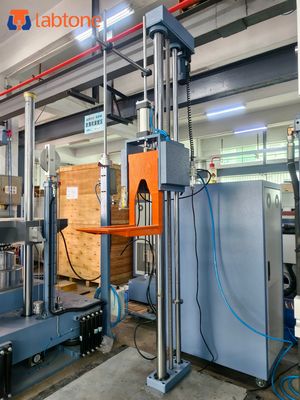

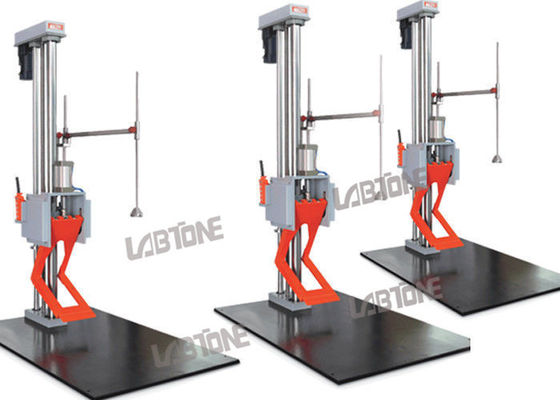

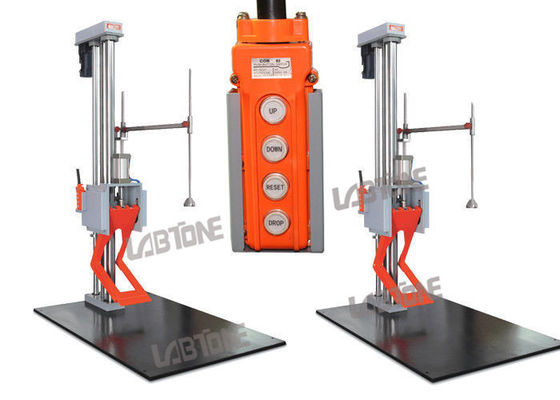

ISTA 6A-Ａmazon Free-fall Packaging Drop Test Equipment Lab Drop Tester
Technical Specifications
| Model | DT150 |
| Drop height range | 300 - 1500 mm |
| Max. Payload | 85 Kg |
| Dimension of specimen | 800 × 800 × 800 mm |
| Height display | Standard scale |
| Control means | Handle control |
| Drop mode | Free drop |
| Height adjustment means | Motor control and adjustment by precision screw |
| Cushioning mechanism | Hydraulic cushioning |
| Dimension of Machine | 1500 (W) ×2150 (H) ×1000 (D) mm |
| Base plate dimensions | 1500 (W) × 20 (H) × 1000 (D) mm |
| Equipment weight | 480 kg |
| Power supply | AC 220V 50Hz (can be adjusted according to customer’s needs) |
| Air pressure requirement | 0.5~0.7 Mpa |
| Model | DT150 | DT200 |
| Drop height range (mm) | 300-1500 | 300-2000 |
| Specimen max.weight (kg) | 85 | 85 |
| Specimen max. size (mm) | 800*800*800 | 800*800*800 |
| Drop mode | Freedom | |
| Machine Dimension (mm) | 1500*1000*2150 | 1700*1200*2750 |
| Machine weight (kg) | 480 | 550 |
| Power supply | AC220V 50Hz compressed air 0.5~0.7Mpa | |
| Standards | ISTA 1A 2A, ISO2248-72(E) JISZ0202-87 IEC68-2-27 | |
Functions and Features
1. Q: What is your warranty ?
2. Q: How-to vedio provided ?
3. Q: Is the machine made in your own plant ?
4. Q: What about the quality ?
