제품 상세 정보:
|
| 이름: | 쉬운 작동 RV3000 배터리 테스트용 기계적 진동 테스트 시스템 | 진동 테이블 (밀리미터): | 600 Ｘ 500 |
|---|---|---|---|
| 진동 방향: | / 다우텀 위로 | 주파수 범위: | 5-100 Hz |
| 조정할 수 있는 변위 범위: | 0-3mmP-P | 받아들일 수 있는 가속 범위: | 0-11G |
| Max.Loading 중량: | 130kg | 작동 모드: | 고정된 /Random/Sweep |
| 전원: | AC 220V 50/60Hz | ||
| 강조하다: | mechanical vibration test system for battery,mechanical shaker table with warranty,vibration test system meet GB standards |
||

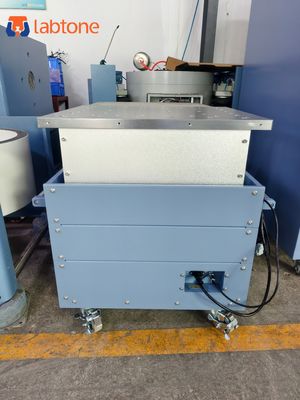

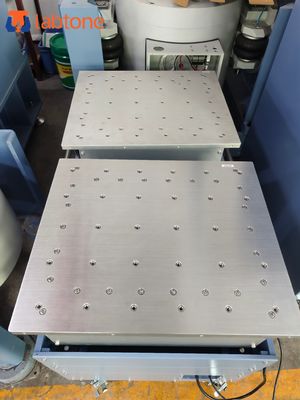

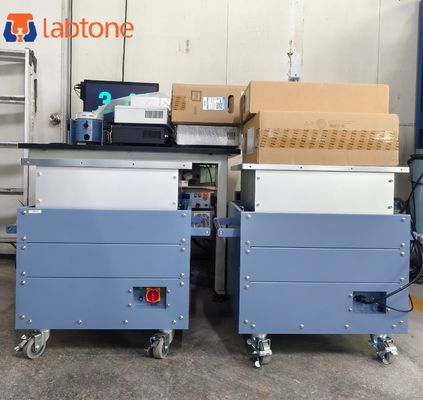

Easy Operation RV3000 Mechanical Vibration Test Systems for Battery Test
Mechanical vibration tester simulates vibration during transport for electronic products, components, spare parts, electromechanical products, and instrumentation, etc. Its vibration and reliability tests comply with the GB, UL, IEC and other standards.
Specification
|
Model
|
RV3000
|
|
Vibration Table (mm) Lx W
|
600 x 500
|
|
Frequency Range
|
5-100 Hz
|
|
Adjustable Amplitude (mmp-p)
|
0-3
|
|
Acceleration Range
|
0-11G
|
|
Max.Payload (kg)
|
130
|
|
Control Interface
|
IBM PC Serial port Rs232 9P/USB Port
|
|
Test Method
|
Fixed frequency,Sweep frequency(linear/logarithm),
multi-stage random
|
|
Waveform
|
Sine Wave
|
|
Vibration Direction
|
Up / Down |
|
Power Supply
|
AC220V 50/60Hz
|
1) Using centrifugal excitation method, low mechanical noise.
2) Using synchronous reverse movement, excellent table evenness.
3) Stepless amplitude adjustment, meet different product test requirements.
4) Use-friendly operation control interface
5) Fixed with shock absorption bags without special foundation.
Customer Services
Presales:
In-Sales:
After-Sales:
Company profile
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty and are available directly from our factory in Dongguan, China. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having a qualified staffs of and experts to solve your problems.
We sincerely invite you to visit our factory.
