제품 상세 정보:
|
| 유효 탑재량:: | 100kg | 테이블 사이즈 :: | 1000x1200 |
|---|---|---|---|
| 빈도:: | 2~5Hz(120~300)RPM | 크기 :: | 고쳐진 1 인치 (25.4MM) |
| 테스트 동작: | 로타리 (동기) | 전원 공급 장치 :: | AC 220V ± 10% 50Hz |
| 가장 밝은 부분:: | 진동 셰이커 테이블 시스템, 진동 셰이커 테이블 | ||
| 강조하다: | rotary vibration tester with large table,vibration testing equipment meets ISTA standards,ISO IEC compliant vibration table |
||

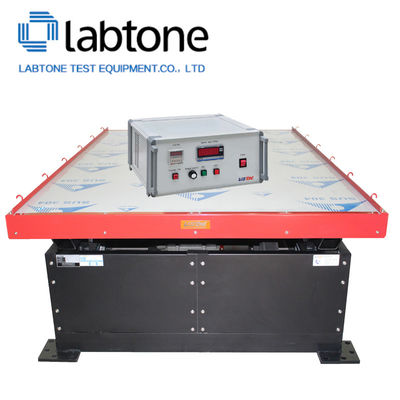

2-5Hz Vibration Table With 120 x 150 cm Table Meets ISTA, ISO and IEC Standards
YST series vibration shakers apply eccentric cam principle to achieve rotation (marquee), vertical and non-synchronized (30°unbalance vibration) vibration modes
Features
Operating mode
Specifications
| Model | YST100 | YST200 | YST500 | YST1000 | YST2000 |
|
Max Payload(kg) |
100 | 200 | 500 | 1000 | 2000 |
|
Table Size(mm)
|
1000x1200 | 1200x1200 | 1200x1500 | 1500x1500 | 1500x1500 |
| Frequency Range | 2~5Hz(120~300)RPM | ||||
| Displacement | 25.4mm Fixed | ||||
| Test Motions | Rotary (Synchronous) | ||||
| Power Supply | AC220V±10% 50Hz | 3-phase 380V±10% 50Hz | |||
Customer Services:
Presales
In-Sales
After-Sales
Compnay Profile:
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
We sincerely invite you to visit our factory.

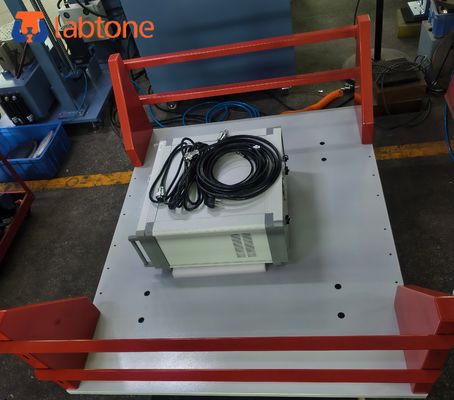

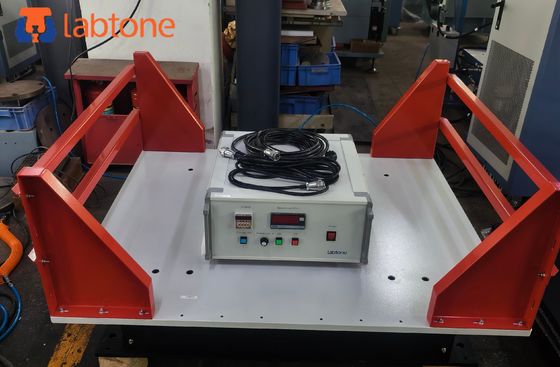

Detailed Pictures:
